OK60 Plastic Heavy Serie with AL
There are many cable carrier systems produced by Tacflex Cable Carrier Systems. These systems can easily find the desired product with the material used, length, width, or categorized according to the intended use of the product.

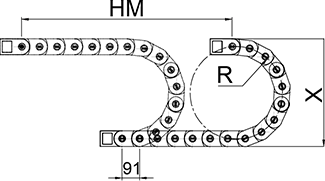

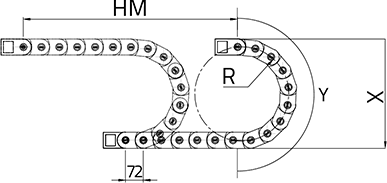

| Bending Radius | 100 | 150 | 200 | 250 | 300 |
| H (mm) | 91 | 91 | 91 | 91 | 91 |
| X (mm) | 282 | 382 | 482 | 582 | 682 |
| Y (mm) | 314 | 471 | 628 | 785 | 942 |
OK60 AL SERIE
Aluminium , Plastic Heavy Serie with AL
| OK60 AL | A | B | C | D | R | W |
| MODEL | Inner Height (mm) | Inner Lenght (mm) | Outter Height (mm) | Outter Lenght (mm) | Bending Radius | Weight Kg/Mt |
|---|---|---|---|---|---|---|
| OK60 AL 250 R ... | 60 | 250 | 82 | 282 | 100, 150, 200, 250, 300 | 4,065 |
| OK60 AL 300 R ... | 60 | 300 | 82 | 332 | 100, 150, 200, 250, 300 | 4,33 |
| OK60 AL 400 R ... | 60 | 400 | 82 | 432 | 100, 150, 200, 250, 300 | 4,858 |
| OK60 AL 500 R ... | 60 | 500 | 82 | 532 | 100, 150, 200, 250, 300 | 5,386 |
