Seri : OK40 A OK40 K OK40 Y

OK40 Openable From Inner Side

There are many cable carrier systems produced by Tacflex Cable Carrier Systems. These systems can easily find the desired product with the material used, length, width, or categorized according to the intended use of the product.

Material Features
PA6 With %30 Fiber Glass
Speed
5 m/sec
Operating Temperature
-30 °C -+ 130°C

Bending Radius 75 100 125 150 200 250 300
H (mm) 72 72 72 72 72 72 72
X (mm) 212 262 312 362 462 562 662
Y (mm) 236 314 392 471 628 785 942





OK40 A SERIE

Openable From Inner Side , Plastic Heavy Serie



OK40 A A B C D R W
MODEL Inner Height (mm) Inner Lenght (mm) Outter Height (mm) Outter Lenght (mm) Bending Radius Weight Kg/Mt
OK40 A 080 R ... 40 80 62 108 75, 100, 125, 150, 200, 250 , 300 2,348
OK40 A 100 R ... 40 100 62 128 75, 100, 125, 150, 200, 250 , 300 2,516
OK40 A 120 R ... 40 120 62 148 75, 100, 125, 150, 200, 250 , 300 2,684
OK40 A 140 R ... 40 140 62 168 75, 100, 125, 150, 200, 250 , 300 2,824
OK40 A 160 R ... 40 160 62 188 75, 100, 125, 150, 200, 250 , 300 2,936
OK40 A 180 R ... 40 180 62 208 75, 100, 125, 150, 200, 250 , 300 3,048
OK40 A 200 R ... 40 200 62 228 75, 100, 125, 150, 200, 250 , 300 3,272





Plastic End Bracket Assembly Dimensions

OK40 Serie Plastic Heavy Serie Plastic End Bracket Assembly Dimensions Details















Plastic End Bracket Assembly

OK40 Serie Plastic Heavy Serie Plastic End Bracket Assembly Details









Steel End Bracket Assembly Dimensions

OK40 Serie Plastic Heavy Serie Steel End Bracket Assembly Dimensions Details


















Steel end Bracket Assembly

OK40 Serie Plastic Heavy Serie Steel End Bracket Assembly Details

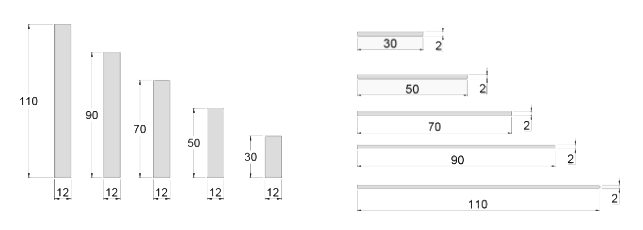

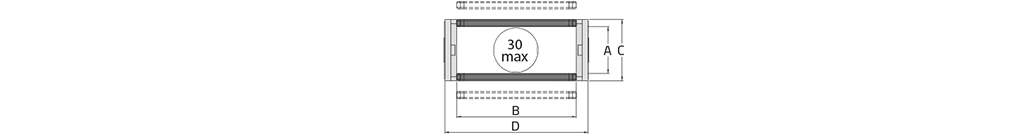

Seperator Dimensions

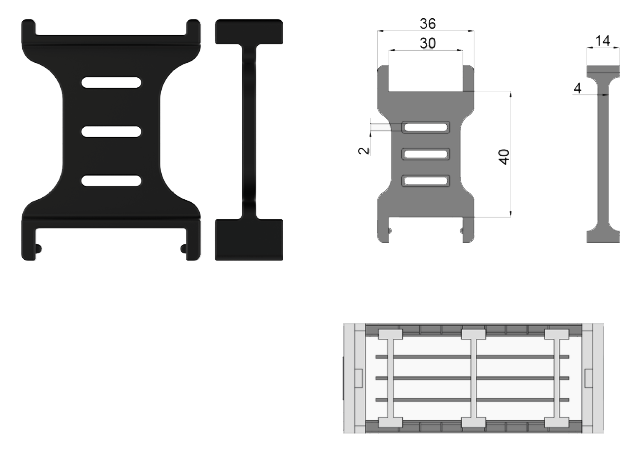

OK40 Serie Plastic Heavy Serie Seperatorleri Details


Vertical OK40 SP





Horizontal OK40 YSP













  • L : Calculation of the Chain Length     HM : Movement Distance     X : Mounting Height    Y : Radius Distance     H : Pitch

I                  L = HM / 2 + Y                   I                   X = R X 2 + C                    I                   Y = R / π                  I



Installation-Disassembly Application

OK40 Serie Plastic Heavy Serie
