Seri : OK35 A OK35 K OK35 Y

OK35 Openable From Inner Side

There are many cable carrier systems produced by Tacflex Cable Carrier Systems. These systems can easily find the desired product with the material used, length, width, or categorized according to the intended use of the product.

Material Features
PA6 With %30 Fiber Glass
Speed
7 m/sec
Operating Temperature
-30 °C -+ 130°C

Bending Radius 50 75 100 150
H (mm) 55 55 55 55
X (mm) 152 202 252 352
Y (mm) 157 236 314 471





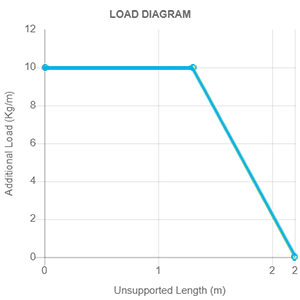

CK35 A SERIE

Openable From Inner Side , Plastic Medium Serie



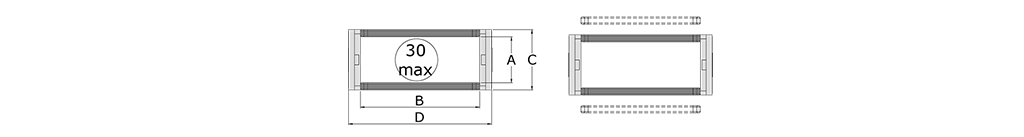

OK35 A A B C D R W
MODEL Inner Height (mm) Inner Lenght (mm) Outter Height (mm) Outter Lenght (mm) Bending Radius Weight Kg/Mt
OK35 A 040 R ... 35 40 52 64 50, 75, 100, 150 1,296
OK35 A 050 R ... 35 50 52 74 50, 75, 100, 150 1,332
OK35 A 060 R ... 35 60 52 84 50, 75, 100, 150 1,368
OK35 A 080 R ... 35 80 52 104 50, 75, 100, 150 1,44
OK35 A 100 R ... 35 100 52 124 50, 75, 100, 150 1,512
OK35 A 120 R ... 35 120 52 144 50, 75, 100, 150 1,584
OK35 A 125 R ... 35 125 52 149 50, 75, 100, 150 1,62
OK35 A 175 R ... 35 175 52 199 50, 75, 100, 150 1,8





Plastic End Bracket Assembly Dimensions

OK35 Serie Plastic Medium Serie Plastic End Bracket Assembly Dimensions Details















Plastic End Bracket Assembly

OK35 Serie Plastic Medium Serie Plastic End Bracket Assembly Details












Steel End Bracket Assembly Dimensions

OK35 Serie Plastic Medium Serie Steel End Bracket Assembly Dimensions Details


















Steel end Bracket Assembly

OK35 Serie Plastic Medium Serie Steel End Bracket Assembly Details

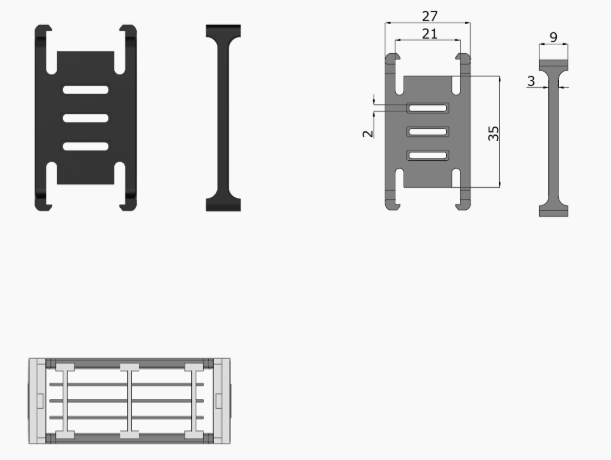

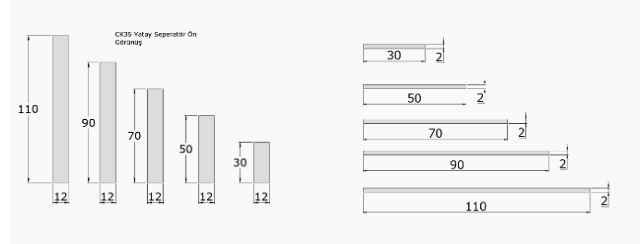

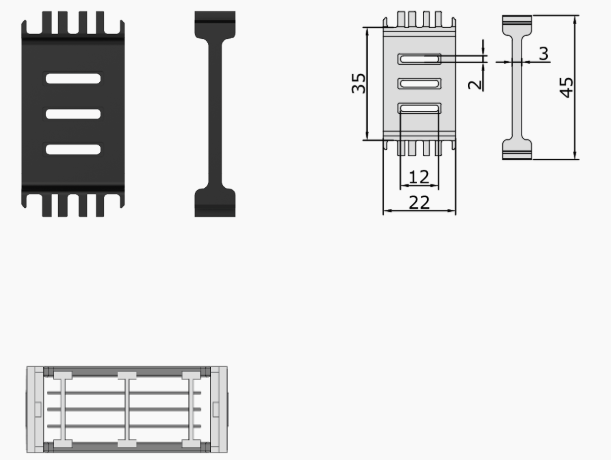

Seperator Dimensions

OK35 Serie Plastic Medium Serie Seperatorleri Details

Open Series Plastic Vertical OK35 SP





Closed Series Plastic Vertical OK35 KSP





Plastic Horizontal OK35 YSP



Strain Relief

OK35 Serie Plastic Medium Serie Strain Relief Details













  • L : Calculation of the Chain Length     HM : Movement Distance     X : Mounting Height    Y : Radius Distance     H : Pitch
